THL_bharatIoT_board_V1_R1
ESP32 board for all your needs

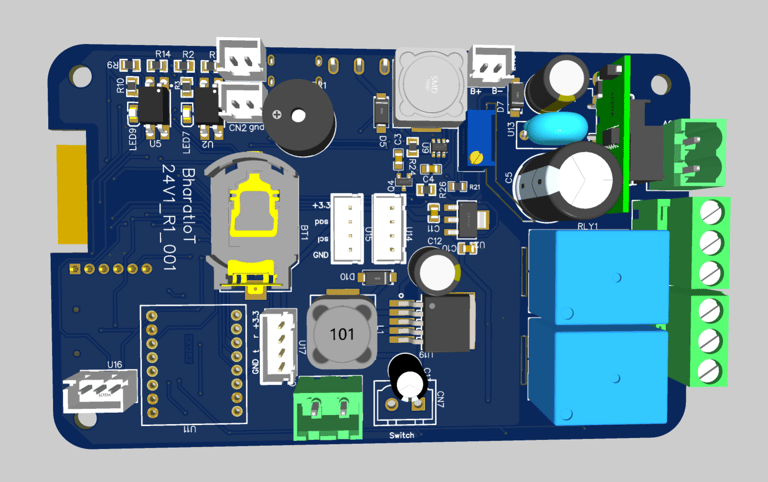

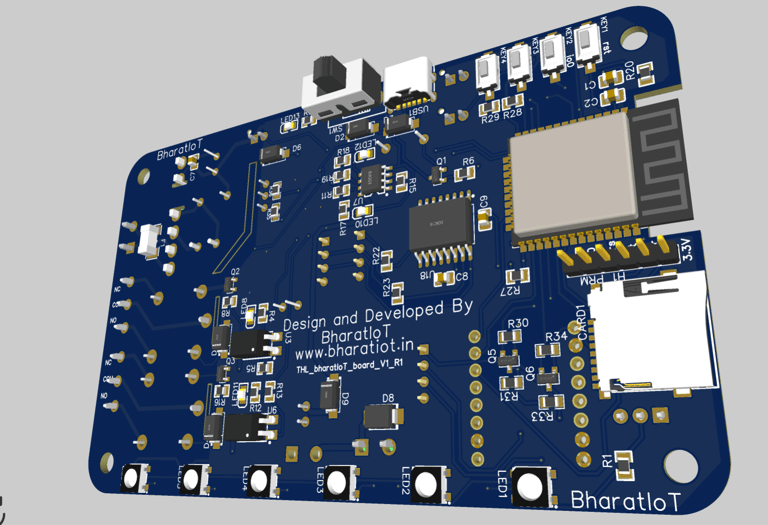

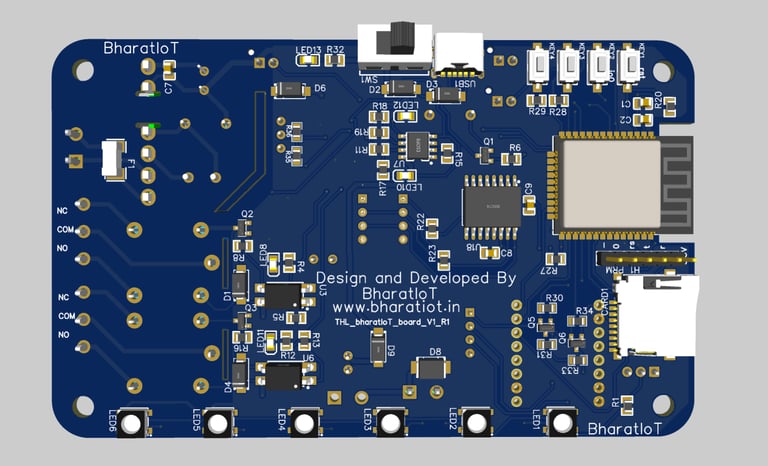

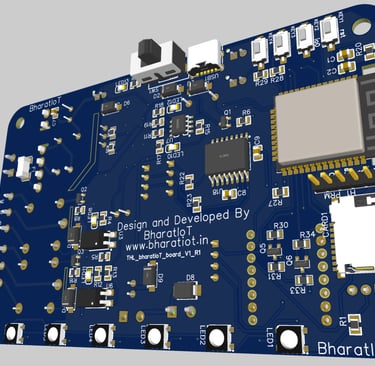

THL_bharatIoT_board_V1_R1
The THL_bharatIoT_board_V1_R1 is a highly versatile and robust IoT board designed to accommodate a variety of applications across sensor integration, home automation, industrial control, educational projects, and data logging. Central to its design is the powerful ESP32 WROOM-32, a main controller celebrated for its dual-core processing capabilities and integrated WiFi and Bluetooth functionalities.
Key Features
Main Controller: The board features the ESP32 WROOM-32, ideal for IoT solutions due to its robust processing power and wireless capabilities.
Power Supply Flexibility: Equipped with an AC to DC converter, the board can be directly powered from an AC supply. Additionally, it supports 12-24V DC input through an onboard DC-DC converter, offering versatility in power source options.
Peripheral Control: The board features two relays for controlling external devices and includes two high voltage inputs. It also supports I2C LCD or OLED displays for advanced user interfaces and can connect to HMIs via a UART port.
High Voltage Inputs and Communication Interfaces: The board accommodates two high voltage inputs and an I2C port with a 5V level converter, facilitating seamless integration with a variety of sensors and peripherals.
Data Storage and User Interaction: Features an SD card slot for local data storage, user-defined switches, and a buzzer for enhanced user interaction and feedback.
Battery Backup: Ensures continuous operation during power interruptions, vital for critical applications in data collection and device control.
Programmable RGB LED: Adds a visual dimension to the board, allowing for customizable color indications which can be programmed to reflect different operational statuses or alerts, enhancing the user experience and functionality.
Applications
Sensor Device Integration: The board's extensive input options and robust processing capabilities make it ideal for integrating various sensors for applications in environmental monitoring, health, or industrial automation.
Home Automation: With relay controls and various input types, the board is well-suited for developing smart home solutions, including automated lighting and security systems.
Industrial Control: The high voltage inputs and outputs cater to industrial automation needs, allowing for the control and monitoring of heavy machinery and processes.
Educational Projects: Its ease of use and comprehensive features make the board a valuable tool for college projects, helping students develop and explore IoT solutions.
Data Logger: The inclusion of an SD card and multiple power options makes the board perfect for data logging tasks in challenging environments.
The THL_bharatIoT_board_V1_R1 serves as a comprehensive solution for a wide array of IoT applications. Whether for professional deployment or educational purposes, this board provides the necessary features to facilitate the exploration and expansion of IoT technology.
To Buy Contact Us +91 99548 10113
