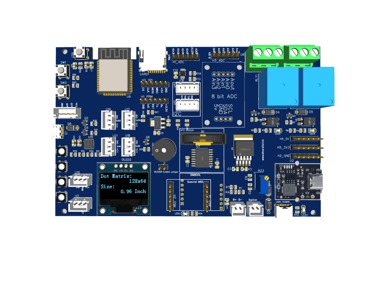

BharatIoT_ V2 ESP32 Development With battery for IoT Application
The board has been thoughtfully designed with a focus on accommodating various IoT-related developments, including data logging, monitoring, and control. Its key component is a powerful ESP32 WROOM 32 microcontroller with dual-core capabilities, specifically chosen to address the requirements of IoT applications. With its robust processing capabilities, the ESP32 WROOM 32 microcontroller empowers the board to efficiently handle IoT tasks. It can seamlessly handle data logging, enabling the collection and storage of valuable information from connected devices or sensors. Additionally, it facilitates real-time monitoring, allowing users to observe and analyze data streams in a timely manner. The microcontroller's dual-core architecture enhances its multitasking abilities, enabling concurrent execution of multiple IoT-related operations. Furthermore, the board's design ensures compatibility with a wide range of IoT peripherals and communication protocols. It offers various interfaces and connectivity options, enabling seamless integration with sensors, actuators, and other IoT devices. This versatility allows for flexible control and interaction with the connected ecosystem.
Introduction
In the rapidly evolving world of Internet of Things (IoT), the BharatIoT_V2 ESP32 Development Board is a standout choice for enthusiasts and developers aiming to build sophisticated IoT projects. This versatile board integrates powerful features, including the ESP32 WROOM 32 chip, along with an array of components that enhance its functionality for a wide range of applications. In this blog, we'll explore how to harness the full potential of the BharatIoT_V2 board to create a comprehensive IoT solution.

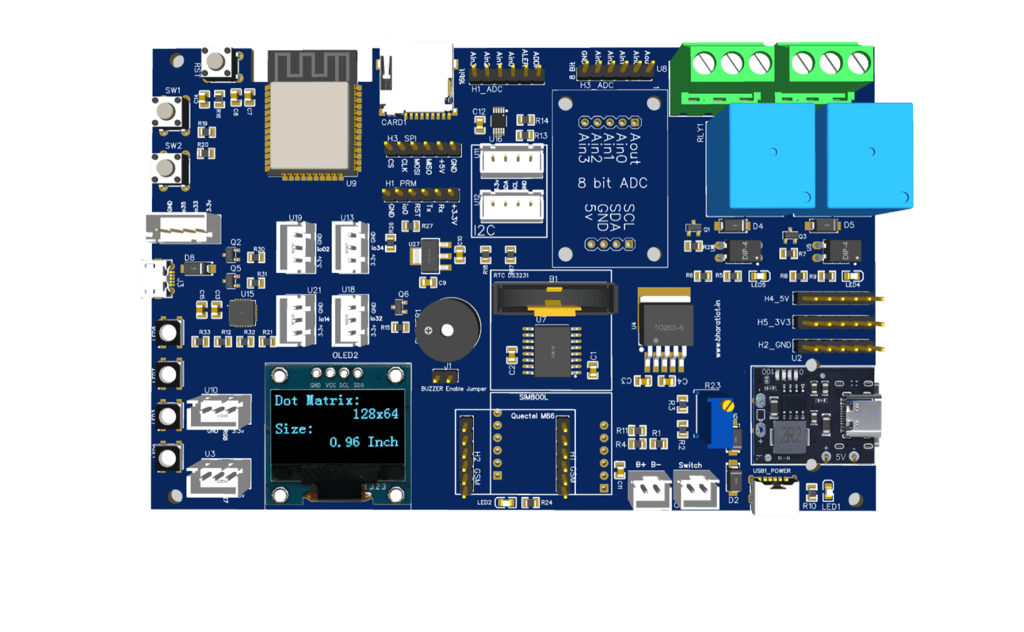

Overview of the BharatIoT_V2 Board Components
The BharatIoT_V2 board is equipped with a robust lineup of components that make it ideal for various IoT applications:
ESP32 WROOM 32: At the heart of the board, this powerful module offers WiFi and Bluetooth connectivity, essential for IoT applications.
DS3231 Real Time Clock (RTC): Ensures accurate timing and date keeping, even when the power is off.
5200mAh Battery: Provides extended operation time and reliability in field deployments where power supply is inconsistent.
OLED 0.96 inch Display: For displaying real-time data and status messages.
WS2812B RGB LEDs (4 Nos.): Adds visual indicators or status lights with customizable colors.
External 16-bit and 8-bit ADCs: Enhances analog data accuracy, suitable for high precision sensors.
2 User-Defined Switches: Allows user interaction for setting configurations or controlling operations.
Buzzer: Offers auditory feedback for alerts and notifications.
SD Card Socket: Enables data logging which is crucial for applications requiring historical data analysis.
10A Relay: Can control high power devices, making it suitable for home automation and industrial control.
The BharatIoT_V2 ESP32 Development Board is highly versatile, making it suitable for a wide range of IoT projects. Here are ten exciting project ideas you can implement using this board:
Smart Home Automation System: Use the board to control lighting, heating, or air conditioning systems remotely via the internet. Employ the relays for turning appliances on/off and the sensors to monitor environmental conditions.
Remote Weather Station: Create a comprehensive weather station that can measure temperature, humidity, atmospheric pressure, and more. Use the OLED display to show real-time weather data, and log the data on the SD card for historical analysis.
Wireless Security System: Build a security system with motion detectors, door/window sensors, and cameras. Use the WiFi capability for remote monitoring and the buzzer for alarms.
Personal Health Monitoring Device: Develop a wearable or bedside device that monitors vital signs like heart rate or blood oxygen levels using external sensors, displaying data on the OLED and alerting through the buzzer or LEDs in case of abnormal readings.
Automated Plant Watering System: Implement an IoT-based solution to monitor soil moisture with sensors and automatically water plants when needed using the relay to control water pumps.
Industrial Equipment Monitoring: Use the board to monitor the condition and performance of industrial equipment, such as temperature or vibration levels, with high-precision ADCs enhancing the measurement accuracy.
Smart Energy Meter: Create an IoT energy meter that can measure and log power consumption in real-time, provide usage statistics on the OLED, and potentially control high-energy devices via the relay to manage energy usage effectively.
Vehicle Tracking and Telematics: Design a vehicle tracker that uses GPS and sensors to monitor location, speed, and other vehicle diagnostics, sending this data to a server for real-time tracking and historical logging.
IoT-Enabled Fitness Equipment: Convert traditional fitness equipment into smart devices that track usage, performance, and maintenance needs, displaying data on the OLED and logging for trend analysis.
Connected Learning Tools: Develop educational tools or toys that interact with users, provide feedback, and adapt to a learner’s progress, using the board’s various sensors and output devices like the buzzer and LEDs for interactive responses.
